Acura Legend L, LS, GS and Standard
Bose Car Stereo, Speaker and Amplifier Removal and Repair
Acura Legend Car Stereo Removal and Repair
Acura Legend
2100 and 2200
Bose Car Stereos
Acura Legend
TROUBLESHOOT
Bose Amplifier
With diagrams for troubleshooting
Acura
Wire Color Codes
Factory Wire Harness Color Codes Below
Aftermarket
Wire Color Codes and Hook Up
Factory Connectors and Color Codes Below
Speaker Phasing
Installing Aftermarket Speakers and Proper Hook-up
NO AUDIO
With aftermarket stereo installation?
Locating Radio
COdE
Erratic Volume Control
DIY Repair
Disassembly and Troubleshooting of Acura Bose
Amplifier
Remove Bose Amplifier from
behind rear seat, instructions can be found at link above.
1) Remove screws securing
cover to Bose amplifier.
1) Remove cover and set to
side.
1) Remove screw securing
interconnect printed circuit board and connectors.
1) Gently unplug interconnect
circuit board connectors from all Bose amplifiers.
NOTE - When reconnecting these connectors, be sure all
connector pins align properly.
1) Remove interconnect circuit
board with connectors and set to side.
1) Four Bose amplifiers
enclosed in housing.
1) Amplifiers labeled for
which speaker they control.
1) Remove four screws securing
each amplifier and remove amplifier when troubleshooting. See steps below.
Troubleshooting Bose Amplifier
Mark or label amplifiers before removing from housing. This will aid in
troubleshooting and not mixing amplifiers. There are two different types
of Bose amplifiers in this enclosure. Front and rear amplifiers are
equalized differently. Front amplifiers (2) control more mids and highs
while rear amplifiers (2) control more mids and bass.
You should have already troubleshoot the
speaker locations to determine which speaker location has snap, crackle,
pop or high pitch squeal. Swap Bose amplifiers in housing. Reassemble,
reconnect in car for testing.
If the problem has followed the amplifier
to a new location, this is an amplifier problem.
If the problem continues to remain in the
same location
This is a stereo problem
Or, speakers
may need another look.
In many cases, with older Bose amplifiers,
it is very likely if one amplifier is experiencing problems at this time,
the others are not too far behind.
Acura Legend L, LS, GS and Standard
Bose and Non Bose Speaker and Amplifier
Door Panel Removal 1 of 2, see 2
Front Door Panel and Bose
Speaker with Amplifier Removal for Repair
1.1) Remove two screws located under arm
rest.
2.1) Gently pry cover from door open cavity.
2.2) Remove two exposed screws.
3.1) Gently pull bottom of door panel from
door releasing clips. Clips release with pressure.
3.2) Lift door panel up out of window jam. The clips that hold the top of
the panel require some pressure to release.
4.1) Pull top edge of door panel away from
door, disconnect all connectors at front of panel and courtesy light
connector.
5.1) Push blue/green tab away from door open cable
and release cable up out of slot.
5.2) Remove door panel.
6.1) Remove four screws securing Bose speaker
to door panel. Tweeter for door is bolted to removed door panel at Bose
speaker grill.
If you are
attempting to install a new aftermarket car stereo and speakers, see Speaker Phasing to determining polarity of speaker for correct hook up.
Door Panel
Removal 2 of 2, see 1
Front Door Panel and Speaker Bose
Speaker Removal Guide

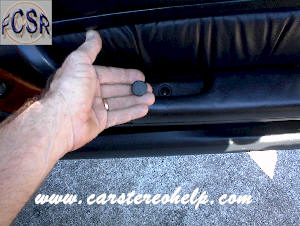

1.1) Remove screw cap from door panel and
remove exposed screw.
2.1) Remove screw cap from door panel hand
hold cavity and remove screw.
3.1) Gently pry plastic cover from door open
handle cavity and remove two screws.
4.1) Gently pull bottom of door panel away
from door releasing panel clips. Clips release with pressure.
4.2) Lift door panel up out of window jam.
4.3) Release door open cable, pull to release cable from lock. Twist green
cable lock from end of cable, release hook up from lock.
5.1) With top edge of door panel
pulled back for access, disconnect all connectors to door panel
from door lock, window switch, and courtesy light.
5.2) Remove door panel from door.
6.1) Remove four screws securing Bose speaker
to door panel.
*NOTE - pictured Bose speaker has
water damage and sounds distorted or crackly. Bose Automotive sells new speakers $60 each, for all cars ten or more years old.
Acura Legend LS and GS
Bose Amplifier Removal and Repair
*NOTE- These instructions show
the Acura Legend 2 door. The Acura Legend 4 door is different, these instructions will
show differences in the following steps.
There are two varieties of this stereo system
Acura Legend GS and LS Bose amplifier removal
shown here, Commonly we see the Bose amplifier in shop for repair, located
behind the rear seat and have the same symptom of no/low volume, snapping and
popping. There is a Recall on this amplifier, contact your local dealership
before sending for repair.
Bose
Amplifier Removal For Acura Legend LS and GS ONLY
1.1) Open both rear passenger doors.
1.2) Look to the front of the rear seat near the floor. There are two tabs, each centered
where passenger sits. Pull the tab toward the front seat while lifting the seat up. Loosen
each side, then lift front of bottom seat up releasing hooks from rear of seat and remove
from car.
2.1) Along the bottom of the back seat there
are four 10mm bolts, remove them. *NOTE
(Two door only)
2.2) The center two bolt, look closely, have two bolts above them, remove top bolts. *NOTE (Four door only)
2.2) Remove both head rests. Look closely at exposed slot in the
material. With 10mm socket and extension, find bolt in the slot and remove.
3.1) To remove the back seat it must be
lifted straight up. There are three hooks that hold it in place at the top. I have sometimes found
releasing two is easy. If you have difficulty on the third push the seat back into place
and begin again at the tuff side. Remove the back seat from the car.
4.1) Remove the amplifier, it is bolted in
with three 10mm bolts, along with three connectors, one white, and two brown. Press the
triggers on the connectors and release.
Acura Legend LS and GS
Bose Speaker Removal and Repair
1.1) Gently pry BACK edge of speaker grill up out of frame.
2.1) With back edge up, remove speaker grill
toward back of car releasing front tabs.
3.1) Remove four screws securing Bose
speaker to rear deck.
TECH TIP - pick tool is
pointing to loose dust cover. Use 3-5 minute epoxy to glue dust cover back
onto speaker cone. Be careful, do not let glue seep down past dust cover
into speaker coil.
Acura Car Audio - Wire Diagrams - Wire Color Codes
DO NOT CUT FACTORY WIRE HARNESS
Aftermarket stereo installation?
Why purchase the aftermarket wire harness? Installation is easier, no guess work with wire color codes and a Headache Saver!Factory wire colors codes are not universal. See Aftermarket Videos above.
We discourage cutting the factory wire harness.
This section aids in troubleshooting and determining wire color codes, phasing for speaker hook up, locating power wires for installing external devices and add-ons.
1986 - 1998
Battery +12 volts constant
White/Yellow Stripe or White/Blue Stripe
Accessory +12 volts switch
Yellow/Red Stripe
Ground
Black
Illumination
Red
Dimmer
Red/Black Stripe
Power Antenna
Yellow/White Stripe
Left Front Speaker (+)
Blue/Green Stripe
Left Front Speaker (-)
Gray/Black Stripe
Right Front Speaker (+)
Red/Green Stripe
Right Front Speaker (-)
Brown/Black Stripe
Left Rear Speaker (+)
Blue/Yellow Stripe
Left Rear Speaker (-)
Gray/White Stripe
Right Rear Speaker (+)
Red/Yellow Stripe
Right Rear Speaker (-)
Brown/White Stripe
1998 and Up
Battery +12 volts constant
White/Green Stripe
Accessory +12 volts switch
White/Red Stripe or Orange
Ground
Black
Illumination
Red
Dimmer
Red/Black Stripe
Power Antenna
Yellow/White Stripe
Left Front Speaker (+)
Blue/Green Stripe
Left Front Speaker (-)
Gray/Black Stripe
Right Front Speaker (+)
Red/Green Stripe
Right Front Speaker (-)
Brown/Black Stripe
Left Rear Speaker (+)
Blue/Yellow Stripe
Left Rear Speaker (-)
Gray/White Stripe
Right Rear Speaker (+)
Red/Yellow Stripe
Right Rear Speaker (-)
Brown/White Stripe
Diagrams may not be 100% accurate for your vehicle.
