Dodge Ram 1500 / 2500 / 3500 Front Door Speaker Removal Dodge Ram Pick Up How to Removal Front Door Panel Speaker Guide 1.1) Roll window down. 1.2) Remove first screw in hand hold pocket. 2.1) Remove second screw in hand hold pocket. 3.1) Remove hand hold pocket from door panel. 4.1) Place pry tool under front edge of control panel. 5.1) Push in at front edge and pry up to release clip. All clips release with pressure. 6.1) Remove control panel from door panel. 7.1) Release trigger on connector to disconnect control panel. 8.1) Remove control panel and set to side. 9.1) Remove one screw top front of door panel. 10.1) Gently pry bottom back corner of door panel releasing clips. 11.1) Work across bottom and up front edge of door panel releasing clips. 12.1) Work across top of door panel releasing clips. 13.1) Check door panel to be sure all outside edges of panel are free from door. 14.1) Lift rear edge of door panel up. 15.1) Release door lock from door panel. 16.1) For Driver's Door only, reach behind front top edge of door panel at side mirror adjustment control, release trigger on connector to disconnect. 17.1) Pull door open handle and guide door panel over handle to release. Set door panel to side. 18.1) Check door for remaining door panel clips. 19.1) Gently pry door panel clips from door. 20.1) Place door panel clips into slots on door panel ready for reinstallation. When reinstalling door panel, be sure panel clips align with openings in door, then push door panel into place.     21.1) Remove screws securing speaker to door.

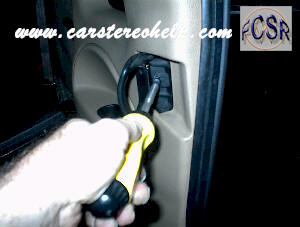

Dodge Ram 1500 / 2500 / 3500 Rear Door Speaker Removal Dodge Ram Pick Up How to Removal and Installation Rear Door Speaker Guide 1) Unlock window, remove two screws on window lock latch and pull hinge assembly from door panel. 1) Remove two screws from hand hold pocket. 1) Pull door open latch for access to exposed screw and remove. 2) Door panel is attached with panel clips. Applying pressure to panel while removing panel will release clips. 1) Release door handle cable from socket, pull on cable to release from lock. 1) Turn cable assembly to line end lug up with release slot and remove door panel. 1) Remove screws securing car stereo speaker to door panel. 1) When removing door panel, check for clips remaining on door. 1) Pry clip from door. 1) Install clip into slot on door panel before re-assembly.
